PRODUCT DETAIL

Super Clear, Cost Effective , Data Security

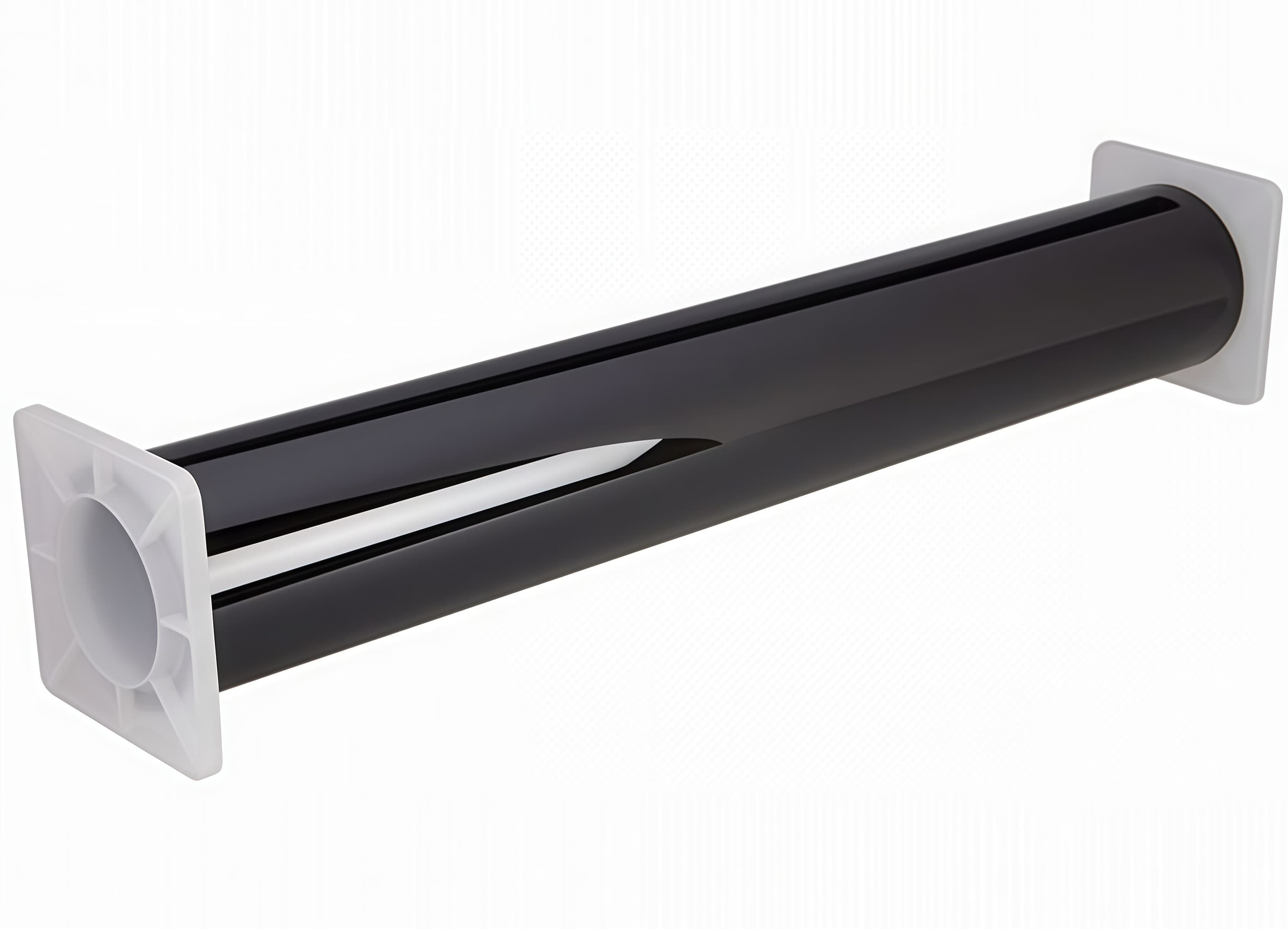

Nano Cloaking Film is made by NHDFilm. It is an LED cloaking technology for glass walls that obscures content on LED screens from outside view.

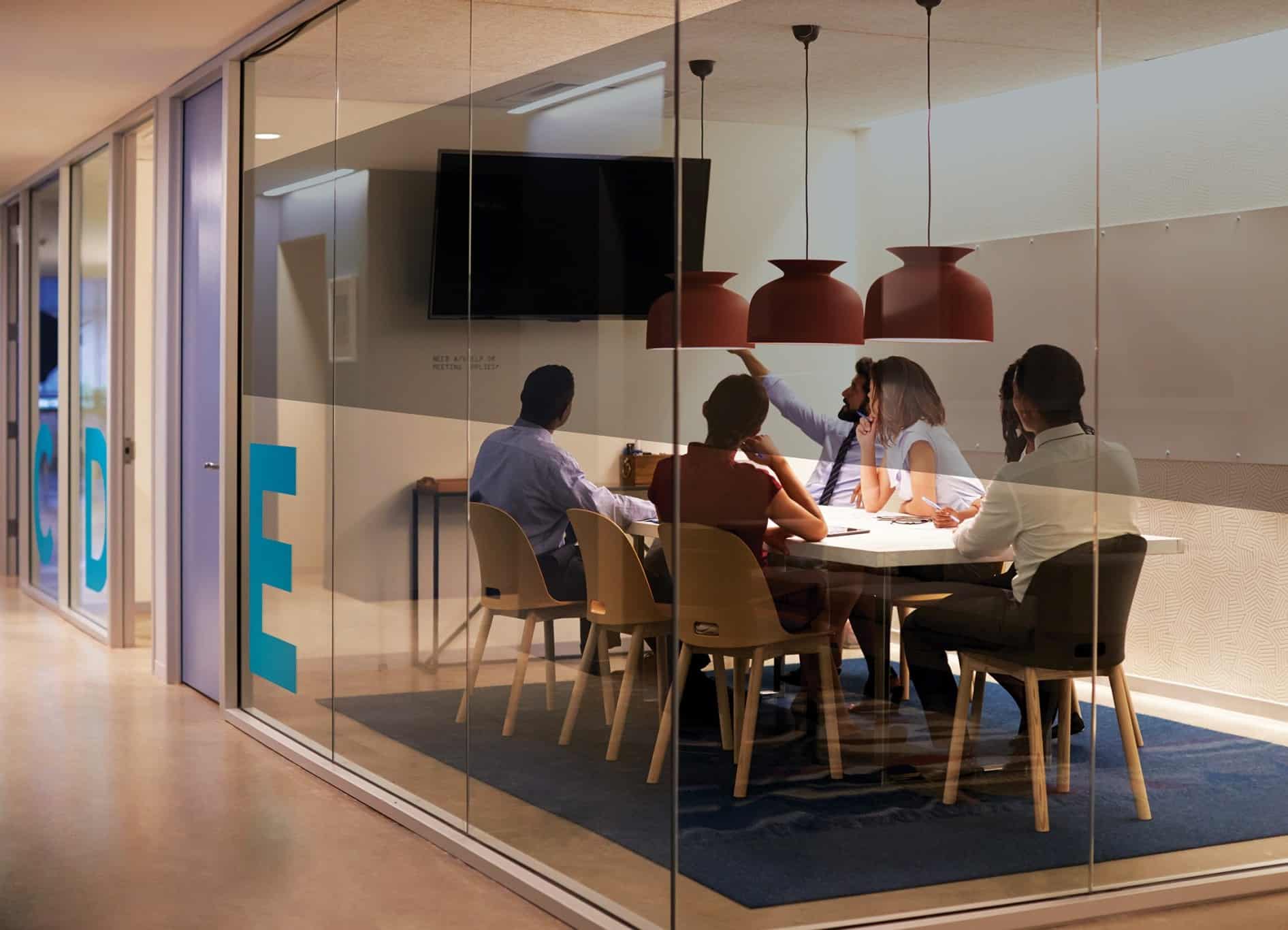

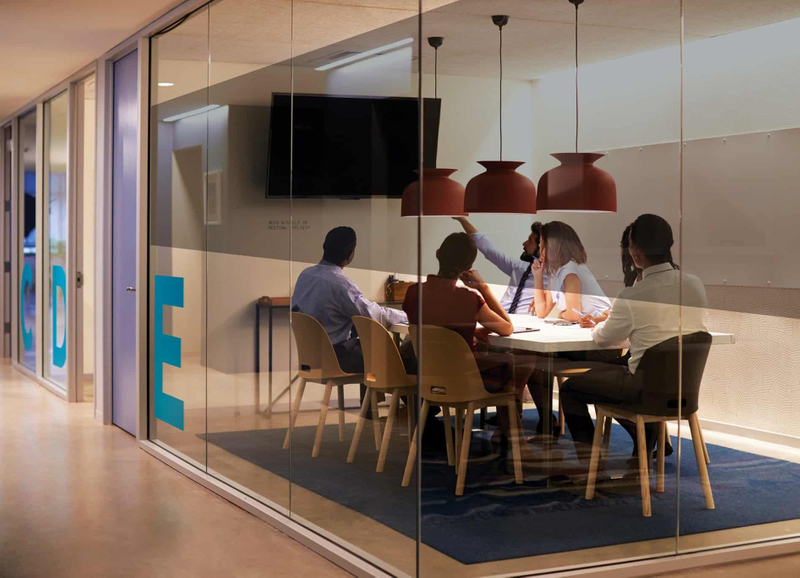

It's a high transparent film material with back adhesion which can be easily pasted on the glass. Anyone looking into the room from the outside sees just a black screen, while everyone in the room can work freely with peace of mind.

Nano Cloaking Film Nano Polarising film

Model:	T0F2
Width:	36 inch 48 inch 54 inch 56 inch 60 inch
Availability:

Quantity:



Inquire Add to Basket

Nano Cloaking Film — Technical Data Sheet
Attribute	Specification
Product Name	Nano Cloaking Film
Model	T0F2
Use	Architectural Glass Films
Compatibility*1	LED Liquid Crystal Display
Length	100feet
Width	36/48/54/56/60inch
Visible Light Transmittance	≥43%
Haze	≤1%
Ultraviolet Rejection	≥75%
Infrared Rejection	≤12%
Cloaking Efficiency	99.95%
Effective Thickness	.007+/-.0007 inch
Color	Clear Grey
Material	PET + Polyvinyl + Triacetate
Backing Adhesion	Acrylic Pressure-sensitive Adhesive(High/Medium Tack)
Surface Treatment	Anti-crack/Scratch Resistant HC(Optional)
Orientation*2	0 Degree(Standard Vertical)
Working Environment	-5 ~ +60°C/90%RH
Extreme Test Environment	-30 ~ +80°C/90%RH/1200H
Storage Environment	10 ~ 30°C/70%RH
Packaging & Label	Composite Sealing/Sun & Moisture Proof Warning
Effective Warranty	12 Months (1 Year)
Test Reports	Chemistry, REACH SVHC 263/ RoHS, Compliant; Flammability, ASTM E 84, Class A; Fire Safety, EN 13501-1:2018 Class C; Flammability, GB 8624-2012, Pending; VOC, CA 01350, Pass
Place of Origin	China
※Above are sample values and not an absolute guaranteed.
*1Before use, please test the compatibility of the LED monitor. This product does not guarantee to support for monitors of all brand and models.
*2Standard installation orientation is 0 degree, small part of installations are 90 degrees or other angles. If you have any questions, please consult our company or local dealers.
