GiantMirror Holographic Foil can be used for 180 degree one side projection and 360 degree four sides projection. It can make the largest hologram projection in the world. Mostly will be used in trade show, exhibition, etc.

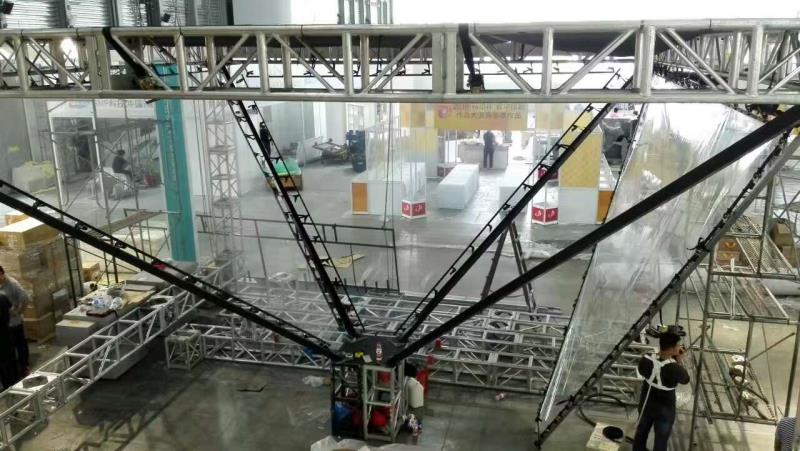

GiantMirror™ holographic projection film (holo mirror foil) is a unique, optically-clear polymer foil material to create amazingly life-like 3D holographic images. With its unique Nano Magnetron Sputtering Coating(NMSC) technology, the polymer foil features with nearly 95% light transmittance and still 19% reflection rate. This ultra-thin holographic projection foil is typically manufactured into roll format with typical 0.1mm thickness, 3-8 meters width and 200m long. Multiple pieces can be simply joined to create even larger displays, which means one can make a screen with no practical size limit. Rigging by special tools inside the apparatus, the polymer film flatting 45 angle to the screen, lying between the stage and the audience. The screen display could be from projector(s) or LED panels. The holographic mirror foil is designed to work in public performance areas such as concert venues, theaters, exhibition centers, nightclubs, marquees, large office environments, retail stores and TV studios.
Features:
High transparency - nearly 95%
High reflection - 19%
Maximum size roll - 8m x 200m
Custom sizes available
Special rigging tools available
GiantMirror™ Technical Data | |||||||||
Size | Optical | Display | Mechanical | ||||||
Width | Length | Depth | Transmittance | Reflection | Haze | View Angle | Gain | Stretching resistance | Hard |
3/4/5/6/8 | 50/200 | 0.1mm | >95% | 19% | 1.1% | 180 | 2 | 850.LBS% | 3H |
GiantMirror Holographic Foil can be used for 180 degree one side projection and 360 degree four sides projection. It can make the largest hologram projection in the world. Mostly will be used in trade show, exhibition, etc.
GiantMirror™ holographic projection film (holo mirror foil) is a unique, optically-clear polymer foil material to create amazingly life-like 3D holographic images. With its unique Nano Magnetron Sputtering Coating(NMSC) technology, the polymer foil features with nearly 95% light transmittance and still 19% reflection rate. This ultra-thin holographic projection foil is typically manufactured into roll format with typical 0.1mm thickness, 3-8 meters width and 200m long. Multiple pieces can be simply joined to create even larger displays, which means one can make a screen with no practical size limit. Rigging by special tools inside the apparatus, the polymer film flatting 45 angle to the screen, lying between the stage and the audience. The screen display could be from projector(s) or LED panels. The holographic mirror foil is designed to work in public performance areas such as concert venues, theaters, exhibition centers, nightclubs, marquees, large office environments, retail stores and TV studios.
Features:
High transparency - nearly 95%
High reflection - 19%
Maximum size roll - 8m x 200m
Custom sizes available
Special rigging tools available
GiantMirror™ Technical Data | |||||||||
Size | Optical | Display | Mechanical | ||||||
Width | Length | Depth | Transmittance | Reflection | Haze | View Angle | Gain | Stretching resistance | Hard |
3/4/5/6/8 | 50/200 | 0.1mm | >95% | 19% | 1.1% | 180 | 2 | 850.LBS% | 3H |
