◆Description

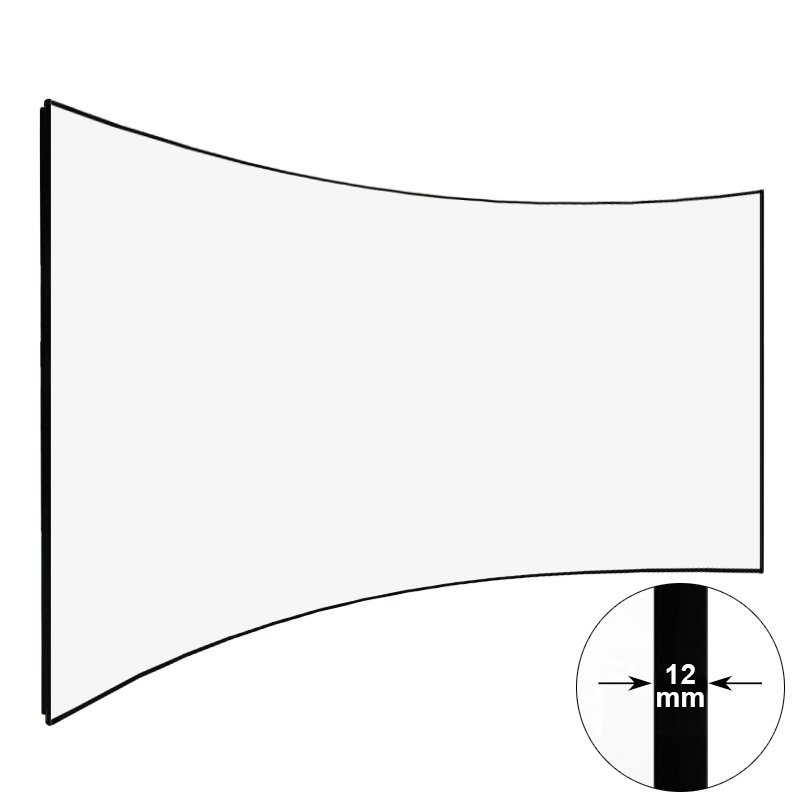

Our Curved Ultra Thin Frame Projection Screen CZHK100B which provides the thinnest visible bezel/frame available in the market today is uniquely designed to resemble a premium LED TV but with much larger viewing area options. CZHK100B Thin Edge Frame uses sturdy extruded aluminum alloy frame with 12mm edge border that offers maximized viewing, making this an excellent addition to both home theater and commercial applications. Watch as your viewing experience soars to new heights of enjoyment!
Excellent picture quality - Suitable for 4K & 3D television/movies.
Installation is easy - With its easy and adjustable fabric spring system, our Thin Frame Screen is perfectly and permanently tensioned, ensuring that the screen is as flat and level as the mirror. Special designed slim bracket for an easy click on installation, also available as an in-wall display. Therefore, the users are able to set up in seconds.
◆Specifications
| Frame Material: | Aluminum Alloy |
| Housing Color: | Black / White / Grey / Orange / Blue / Golden Velvet |
| Size: | 80-200 inch / customized |
| Aspect Ratio: | 16:9 / 16:10 / 4:3 / 1:1 / 2.35:1 / customized |
| Frame Width: | 12mm |
| HD: | Yes |
| 3D: | Yes |
| 4K: | Different fabrics are optional |
◆Spring System
The tension springs along with the fixing lugs stretching and tightening the fabric to make the screen surface completely flat and wrinkle-free
In order to facilitate transport, horizontal frame of 120"+ will be jointed by two or three pieces to reduce the total length
◆Accessories
◆Optional Color Frame
◆Optional Screen Materials
Product Model | Fabric Model | HD/4K | Support 3D Mode | Sound-Transparent |
|---|---|---|---|---|
| CZHK100B-Black Crystal III | Black Crystal III | HD | Active | No |
| CZHK100B-WF1 Pro | WF1 Pro | 4K | Active | No |
| CZHK100B-WF1 Pro Max 4K | WF1 Pro Max 4K | 4K | Active | No |
| CZHK100B-WF1 Pro Max 4K HG | WF1 Pro Max 4K HG | 4K | Active | No |
| CZHK100B-Sound Max 4K | Sound Max4K | 4K | Active | Yes |
| CZHK100B-Sound Max 5 | Sound Max5 | HD | Active | Yes |
| CZHK100B-Sound Max 5 HG | Sound Max5 HG | HD | Active | Yes |
◆Installations
1. According to the quantity of the mounting brackets and appropriate distance, you should install the brackets at the suitable position on the wall with screws.
2. Hang the screen on the wall.
◆Dimension
| Ultra Thin Frame Projection Screen | ||||||||||
| Format | Size | View Area | Frame Size | Package Size | Frame Width(mm) | |||||
| (inch) | W*H(mm) | Frame Length(L) | Frame Width(A) | L(mm)*W(mm)*H | ||||||
| 16:9 | 80" | 1771 | 996 | 1795 | 1020 | 1983*342*148 | 12 | |||
| 90" | 1992 | 1120 | 2016 | 1144 | 2204*342*148 | 12 | ||||
| 100" | 2213 | 1245 | 2237 | 1269 | 2425*342*148 | 12 | ||||
| 110" | 2435 | 1369 | 2459 | 1393 | 2647*342*148 | 12 | ||||
| 120" | 2656 | 1494 | 2680 | 1518 | 2868*342*148 | 12 | ||||
| 135" | 2988 | 1681 | 3012 | 1705 | 3200*342*148 | 12 | ||||
| 140" | 3099 | 1743 | 3123 | 1767 | 3311*342*148 | 12 | ||||
| 150" | 3320 | 1867 | 3344 | 1891 | 3532*342*148 | 12 | ||||
| 160" | 3542 | 1992 | 3566 | 2016 | 3680*342*148 | 12 | ||||
| 170" | 3763 | 2116 | 3787 | 2140 | 3754*342*148 | 12 | ||||
| 180" | 3984 | 2241 | 4008 | 2265 | 2596*240*264 | 12 | ||||
| 200" | 4427 | 2490 | 4451 | 2514 | 2847*240*264 | 12 | ||||
| 4:3 | 100" | 2032 | 1524 | 2056 | 1548 | 2244*342*148 | 12 | |||
| 120" | 2438 | 1828 | 2462 | 1852 | 2650*342*148 | 12 | ||||
| 150" | 3048 | 2286 | 3072 | 2310 | 3260*342*148 | 12 | ||||
| 180" | 3657 | 2743 | 3681 | 2767 | 3869*240*264 | 12 | ||||
| 200" | 4064 | 3048 | 4088 | 3072 | 3399*240*264 | 12 | ||||
| 2.35:1 | 120″ | 2804 | 1193 | 2828 | 1217 | 3016*342*148 | 12 | |||
| 135″ | 3155 | 1342 | 3179 | 1366 | 3367*342*148 | 12 | ||||
| 150″ | 3505 | 1491 | 3529 | 1515 | 3717*342*148 | 12 | ||||
| 180″ | 4206 | 1790 | 4230 | 1814 | 2300*240*264 | 12 | ||||
| 200″ | 4674 | 1989 | 4698 | 2013 | 2534*240*264 | 12 | ||||
Supporting Customized Size
Size From 80" to 200" are available in any ratio
◆Package
All of our projection screens are packed with sturdy carton box, and the surface of the carton covered a waterproof plastic film to prevent damage during transportation.
Showyaaa™ Projection Screens
Showyaaa™ projection screens developed and designed by Nanhai Display are elegant and stylish. Its simple and elegant appearance is also one of its most outstanding features, showing high-end quality.
Their reflected light is very soft, showing the best projection effects. The color of Showyaaa™ screen is natural and realistic, ensuring that the user is not prone to eye strain when watching for a long time. Showyaaa™ screen light is guaranteed to be evenly distributed and projected onto each display area. Its light gain is high and the viewing effect is good. The surface of the screen is easy to clean, moisture-proof, mildew-proof and highly flame retardant. The fabrics can be used for a long time without fading, no yellowing and no deformation issues.
Showyaaa™ projection screens structure is carefully conceived by our experienced designers. With special photographic materials, it perfectly solves the scattering problem of ambient light. It has a powerful viewing angle and a long service life. Its components are all in line with national standards and are harmless to the human body, whether it is the outer casing, fabrics or frame. Nanhai Display guarantees that there will be no pungent smell emitted for our products for they are totally odorless and environmentally-friendly.
